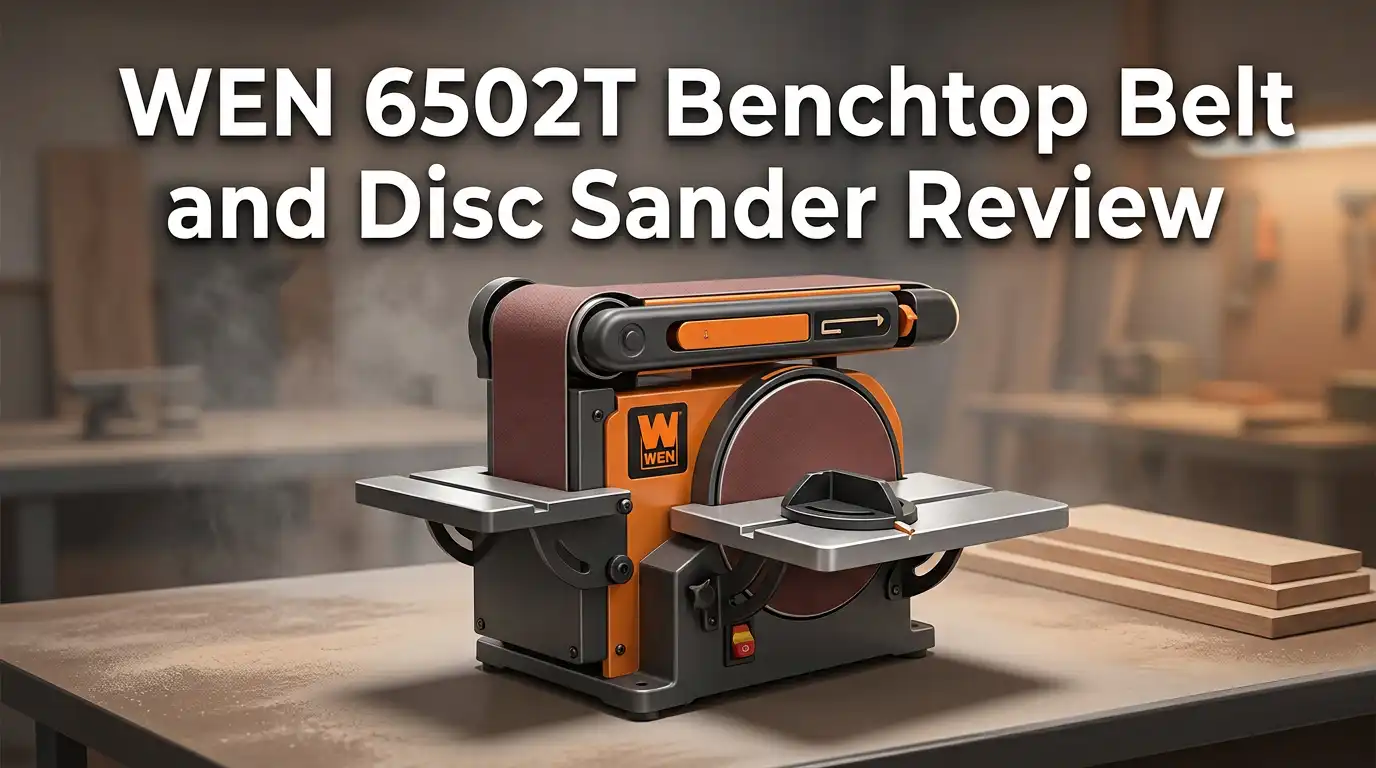

WEN 6502T Benchtop Belt and Disc Sander Review 2026: Worth It?

Shaping wood by hand eats hours. A good benchtop sander gives those hours back. The WEN 6502T promises two sanding surfaces, a cast iron base, and a price near $139. That combination pulls in hobby woodworkers, knife makers, and garage tinkerers every single year.

But low price always raises one question. Does this machine actually hold up? I spent time with the 6502T, read through hundreds of owner reports, and tracked the complaints that repeat. This review covers the good parts, the weak parts, and the honest answer on who should buy it.

You will get the unboxing details, the real sanding performance, the flaws WEN does not advertise, and three solid alternatives. No fluff. Just what you need before you spend the money.

In a Nutshell:

• The price stays the biggest selling point. At roughly $139, the 6502T delivers a 4 x 36 inch belt and a 6 inch disc for less than many single surface sanders cost. For a hobby shop, that value is hard to beat.
• The cast iron base genuinely works. This 41 pound machine sits still. Vibration stays low, and the sander does not creep across your bench during normal use.
• The disc work table is the weakest part. It mounts with a single bolt. That design lets the table flex and shift under pressure, which frustrates anyone chasing precise 90 degree ends.
• The belt tension lever is excellent. Swapping grits takes seconds, not minutes. This feature alone saves real time when you move from 80 grit shaping to 240 grit finishing.
• Dust collection needs help. The 2.25 inch port works, but only with a shop vac attached. Without suction, dust fills the air fast.
• It fits hobby use, not production use. The warranty drops to 90 days for commercial work, and that tells you exactly where WEN positions this tool.

Unboxing the WEN 6502T

The box arrives heavy and compact. WEN packs the sander in molded foam, and the machine sits in the center with accessories tucked around the edges. You will want a second person for the lift. Forty one pounds of cast iron feels awkward in a cardboard box.

Inside you find the sander body, the work table assembly, a cast aluminum table, a miter gauge, the work support bar, an adjustment knob, two socket head screws, washers, and a 6mm hex key. An 80 grit belt comes preinstalled. A sanding disc sits in a separate sleeve.

One small annoyance shows up immediately. The preinstalled belt carries no visible grit marking from the outside. Several owners noted the same thing. You must peek at the back or simply assume 80 grit.

Full Specifications Breakdown

The numbers tell a clear story. The 6502T runs a 120V, 4.3 amp motor rated near one half horsepower. The disc spins at 3600 RPM with no load, and the belt moves at 1900 feet per minute. Those figures sit right in the middle of the benchtop class.

The belt measures 4 x 36 inches. The disc measures 6 inches. The belt bed tilts from 0 to 90 degrees, so you can sand flat, vertical, or anywhere between. The dust port measures 2.25 inches.

Overall dimensions land at 17.9 by 15.0 by 11.2 inches. Net weight hits 41 pounds. WEN includes an 8 amp circuit breaker above the power switch, which protects the motor when you push too hard. That breaker is a smart touch at this price.

Assembly and First Setup

Assembly takes about fifteen minutes. You peel the backing from the sanding disc and press it onto the plate. Then you fit the disc guard with two screws. The work table slides onto its pivot pin and locks with a single knob.

The work support bar mounts with one hex screw and two washers. WEN supplies the hex key you need. No extra tools required for basic setup.

Squaring takes longer than bolting. You need a combination square to set the table at 90 degrees and to align the work support with the belt. Plan on twenty extra minutes here. Owners who skip this step write the angriest reviews. The machine ships close to square, not perfectly square, and that gap matters for joinery work.

Top 3 Alternatives for WEN 6502T

Last update on 2026-10-19 / Affiliate links / Images from Amazon Product Advertising API

BUCKTOOL BD4603 Bench Belt and Disc Sander

Last update on 2026-10-19 / Affiliate links / Images from Amazon Product Advertising API

Rikon 50-112 4 Inch x 36 Inch Belt and 6 Inch Disc Sander

Last update on 2026-10-19 / Affiliate links / Images from Amazon Product Advertising API

WEN 6515T 1 x 30 Inch Belt Sander with 5 Inch Disc

Motor Power and Real World Performance

The 4.3 amp motor handles hobby loads without drama. Pine, poplar, and maple all sand smoothly when you let the belt do the work. Push hard and the motor slows. Push harder and the breaker trips.

That breaker is both a feature and a warning. It protects the windings, but it also reveals the ceiling of this machine. The 6502T is not a stock removal monster. It shapes, smooths, and refines. It does not grind through thick hardwood blanks at speed.

Compared to the 1 x 30 inch sanders in the budget tier, the 6502T feels noticeably stronger. The wider belt spreads heat and resists loading. For knife makers and box builders, the power sits in a comfortable zone. For anyone flattening large panels, it will disappoint.

The 4 x 36 Inch Belt Experience

The belt is the star of this machine. Four inches of width gives you real surface area, and 36 inches of length means the abrasive stays cooler and lasts longer than short loop belts.

The tension release lever earns genuine praise. Pull the lever, lift the old belt off, drop the new one on, push the lever back. Grit changes take under thirty seconds once you learn the motion.

Tilting the bed from horizontal to vertical requires the hex key and a locking screw. It works, but it is not a quick flip. You will not switch orientation mid project without pausing. Tracking adjustment uses a knob on the side, and it holds position reasonably well after a few corrections.

The 6 Inch Disc and Work Table

The disc side does acceptable work on end grain and outside curves. Six inches gives enough travel for small parts, and the included miter gauge lets you sand angles up to 60 degrees left or right.

Here is the problem. The work table attaches with a single bolt. Multiple owners report flex, wiggle, and shifting under moderate pressure. The table also sits low relative to the disc center compared to competing machines, which makes the working position feel cramped.

The table does tilt for bevel sanding. Accuracy depends entirely on how carefully you set it and how firmly you tighten the knob. If precise disc work matters to you, this is the feature to inspect first. Some users add a shim or a second fastener to stiffen it.

Dust Collection Reality

WEN includes a 2.25 inch dust port on the back of the belt housing. Connect a shop vac and collection improves dramatically. Several owners describe it as very good once hooked up.

Run it without suction and the story changes. Fine dust escapes around the disc guard and off the belt drums. The disc side collects less effectively than the belt side because the guard covers only the lower third of the disc.

Treat dust collection as mandatory, not optional. Buy a 2.25 inch hose adapter if your vacuum uses a different diameter. Wear a respirator regardless. Sanding dust from treated lumber and hardwoods carries real health risk, and no benchtop port captures everything.

Noise and Vibration Levels

Reports split here, and the split is interesting. Some owners call the 6502T quiet with almost no vibration. Others call it noisy for the price class.

The cast iron base deserves credit for the vibration control. The machine stays planted. Bolting it to a bench through the base holes improves things further, though many users skip that step entirely and still report stable operation.

Noise comes mostly from the drive belt and the sanding belt itself. A loose drive belt creates extra sound, and the manual addresses this directly with a tension adjustment procedure. If yours sounds rough, check drive belt tension before you blame the motor. Some units also produce a squeak from the belt drums during use.

What the WEN 6502T Does Not Do Well

Honest reviews name the failures. This machine has several.

The disc work table flexes because of its single bolt mount. The belt frame wiggles more than it should. The tracking knob pulses visibly while running on some units, which unsettles new owners even though it rarely causes failure.

Squareness frustrates people. Some owners report surfaces that will not adjust to true 90 degrees, and they return the machine. Lowe’s buyers mention belt slippage and occasional motor failure.

It is also not a production tool. The warranty confirms this: two years for home use, ninety days for professional or commercial use. One owner summed it up well by calling it mediocre in every way yet fine for a handful of projects. Set expectations at hobby grade and you will stay happy.

Pros and Cons of the WEN 6502T

Last update on 2026-10-19 / Affiliate links / Images from Amazon Product Advertising API

Pros

• Strong price to feature ratio. Two sanding surfaces for around $139 beats most competitors in the budget tier.
• Cast iron base keeps vibration low and holds the machine steady on the bench without bolting in most cases.
• Tension release lever makes belt changes fast, which encourages you to actually use the right grit.
• Belt tilts across the full 0 to 90 degree range, adding real versatility for vertical and angled sanding.
• Onboard 8 amp circuit breaker protects the motor from overload damage during heavy pushes.
• Two year home warranty plus available spare parts from WEN, including replacement drive belts.

Cons

• Disc work table mounts with one bolt and flexes under pressure, which hurts precision.
• Belt frame wiggles and feels flimsy compared to heavier machines.
• Squareness requires manual setup and some units resist true adjustment.
• Dust collection underperforms without a shop vac attached to the port.
• Noise levels run higher than several buyers expect at this price.
• Power switch position feels awkward when you work primarily on the belt side.

Who Should Buy the WEN 6502T

This sander fits specific people very well. Hobby woodworkers building boxes, cutting boards, and small furniture will get steady service. Knife makers on a budget use it for profiling and bevel cleanup. Model builders and craft hobbyists find the 4 inch belt generous.

It also suits anyone replacing a worn out 1 x 30 inch sander. The step up in belt width and motor strength feels substantial.

Skip it if you run a shop for money. The 90 day commercial warranty signals short duty cycle expectations. Skip it also if your work demands certified square ends straight from the box. Buy it when you value capability per dollar over refinement. That is the honest dividing line.

Price and Value in 2026

WEN lists the 6502T at $139.35 direct. Retail pricing moves between roughly $120 and $160 depending on sales and seller. At the low end of that range, the value becomes genuinely strong.

Consider the alternative math. A comparable Rikon or BUCKTOOL machine often costs fifty to one hundred dollars more. Those machines bring better tables and stronger motors, and they earn that premium for serious users.

The 6502T wins on entry cost. One buyer framed it memorably as costing about the same as one or two tanks of gas. For that outlay you get cast iron, two sanding surfaces, and replaceable parts. Value here is excellent. Refinement is average. Both statements are true at once.

Tips to Get the Best Results

Square the table and work support before your first real cut. Use a combination square and take your time. This single step prevents most complaints.

Check drive belt tension if the machine sounds rough. The belt should give about one eighth to one quarter inch when squeezed. Too tight creates noise and motor load. Too loose causes slippage.

Always attach a shop vac to the dust port. Always wear eye protection and a respirator.

Let the abrasive work instead of forcing the piece. Pressure burns wood, clogs grit, and trips the breaker. Keep the workpiece moving across the surface to avoid grooves. On the disc, sand only on the downward rotating left side. The right side throws work upward.

Final Verdict

The WEN 6502T earns a cautious recommendation. It delivers real capability at a price that makes a two surface sander accessible to almost any hobby shop. The cast iron base, the fast belt changes, and the 4 x 36 inch belt all perform well.

The disc table flex and the wiggly belt frame are genuine flaws, not nitpicks. They limit precision work and remind you constantly where the money was saved.

Rate it a solid 4 out of 5 for hobby use and 2 out of 5 for commercial use. Owner ratings back that split, sitting near 4.3 stars with 87 percent recommending it. Buy it knowing exactly what you are getting. You will enjoy it far more that way.

Frequently Asked Questions

Is the WEN 6502T good for knife making?

Yes, for hobby level knife work. The 4 x 36 inch belt handles profiling and bevel cleanup on small blades. The 1900 FPM belt speed sits lower than dedicated grinders, so stock removal takes longer. The machine is also rated for wood, so metal sanding generates sparks and shortens belt life. Many knife makers still use it successfully as a starter machine.

What grit belts fit the WEN 6502T?

Any standard 4 x 36 inch sanding belt fits. WEN sells 80, 120, and 240 grit packs under model numbers 6502SP1, 6502SP2, and 6502SP3. Third party belts in the same size work fine. Discs are 6 inch adhesive backed, and WEN offers 80, 120, and 240 grit ten packs.

Does the WEN 6502T need to be bolted to a bench?

Not always. The 41 pound cast iron base keeps it stable for most tasks. Bolting is recommended if the sander tips, slides, or walks during use. The base includes mounting holes, though bolts and nuts are not supplied.

How long does the WEN 6502T warranty last?

Two years from purchase date or 500 hours of use for home use, whichever arrives first. Professional or commercial use drops coverage to ninety days. Wear items like belts and brushes are excluded. You have thirty days to report missing or damaged parts.

Can the WEN 6502T sand metal?

The manual states it is designed for wood and wood like products only. Sanding other materials could cause fire, injury, or workpiece damage. Many owners do light metal work anyway, but doing so falls outside the intended use and may affect warranty claims.

Why does my WEN 6502T keep stopping?

The onboard circuit breaker trips when the motor overloads. Reduce pressure on the workpiece and let the abrasive do the work. Wait a moment, then press the breaker button to reset. Persistent stopping can also signal a loose drive belt or an undersized extension cord.
