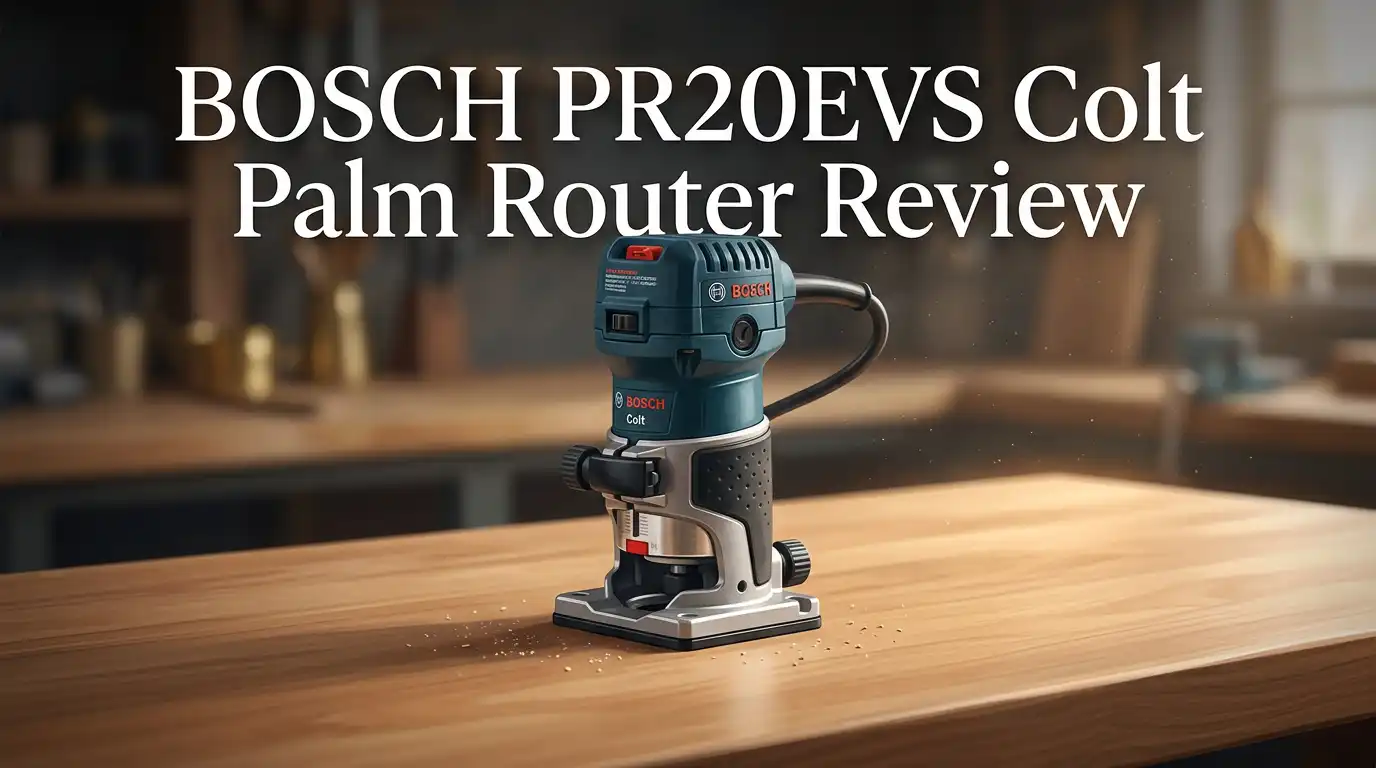

BOSCH PR20EVS Colt Palm Router Review 2026: Still Worth It?

Small routers solve big problems. The BOSCH PR20EVS Colt has sat near the top of that category for years. Woodworkers reach for it when a full size router feels heavy, loud, or simply too much tool for a quick roundover.

But a lot has changed since this router launched. Cordless trim routers now flood the market. LED lit bases are common. Tool prices keep moving.

This review covers the good parts, the annoying parts, and the things Bosch left out. You will know exactly who should buy it by the end.

In A Nutshell:

• Power punches above its size. The 5.6 amp motor produces a 1.0 horsepower max output and spins from 16,000 to 35,000 RPM. That range handles tiny chamfer bits and wide roundover bits without complaint.
• Comfort wins the day. The palm grip shape with soft overmold and finger support pockets makes one handed edge work steady. At 3.3 pounds, fatigue stays low during long sessions.
• Depth control is genuinely precise. You get a coarse adjustment plus a micro fine wheel on the base. Setting a flush trim pass or a shallow dado takes seconds.
• Dust collection is the biggest gap. No dust port ships with the standard tool. You buy the PR007 attachment separately, and chips go everywhere until you do.
• No LED work light. Competitors light the cut. The PR20EVS does not. In a dim shop you will add a lamp.
• Value stays strong. Street price hovers near the low 100s, which keeps it cheaper than most 1.25 horsepower rivals while matching them on build quality.

Bosch PR20EVS Colt Palm Router Overview

Last update on 2026-10-19 / Affiliate links / Images from Amazon Product Advertising API

The PR20EVS is a corded fixed base palm router built around a 120 volt, 5.6 amp motor. Bosch rates it at 1.0 horsepower maximum output. It accepts 1/4 inch shank bits only. The fixed aluminum base opens to 1 9/16 inch, which lets you run cutters up to 1 5/16 inch in diameter. Depth range on the fixed base is 1 3/16 inch.

Two electronics features matter here. Soft start eases the motor up to speed so the tool does not jump in your hand. Constant Response circuitry senses load and feeds extra power to hold RPM steady. Together they make the router feel bigger than its amp rating suggests.

The tool measures 7.5 inches tall and weighs 3.3 pounds. Bosch sells it as a bare tool with the fixed base, a 1/4 inch self releasing collet, and two wrenches.

Unboxing Experience: What Arrives In The Box

My unit arrived in a plain cardboard box with molded inserts. No case. That surprises some buyers, so check the model code before ordering, since the PR20EVSK kit version adds a plunge base and a carry bag.

Inside you find the motor unit already seated in the PR001 fixed base. Under it sit two wrenches, one shaft wrench and one collet wrench, plus the 1/4 inch self releasing collet chuck installed. A short manual completes the package.

First impressions were strong. The aluminum base felt cold, dense, and well machined. The clamp lever snapped shut with a confident click. The cord exits at an angle, which immediately keeps it off the workpiece. There are no bits included, so plan to buy a starter set the same day.

Design And Build Quality

Bosch built this router to survive a job site. The base is cast aluminum, not stamped steel or plastic. Flex is nearly zero when you press down on an edge. The motor housing uses tough composite with rubber overmold across the palm area.

The two finger support pockets deserve attention. They are shallow scallops on each side of the housing. Your fingertips drop into them and gain real leverage. Edge trimming becomes far more controlled, because you can press inward rather than just downward.

Fit and finish hold up. Nothing rattles. The speed dial clicks through its settings with firm detents. The clamp lever tension is adjustable with a screw, so you can tighten it as the tool ages.

One gripe. The base plate is black, not clear. You cannot see your layout line through it, which forces more head tilting than I would like.

Motor Power And Speed Control

The 5.6 amp motor is the heart of this tool. On paper it sits below the 7 amp class routers from DeWalt and Makita. In practice the gap is smaller than the spec sheet implies.

I ran a 3/4 inch roundover in hard maple. With moderate feed speed and two passes, the motor held steady. Constant Response circuitry kept RPM from sagging, which showed up as cleaner surfaces with fewer burn marks. Push too hard in one pass and the motor does bog, as expected from any 1 horsepower trim router.

The variable speed dial runs 16,000 to 35,000 RPM in six marked positions. Lower speeds suit larger bits and plastics. Higher speeds suit tiny bits in hardwood. Soft start removes the startup jerk entirely, which matters when you balance the tool on a narrow edge.

Top 3 Alternatives for Bosch PR20EVS Colt Palm Router

Last update on 2026-10-19 / Affiliate links / Images from Amazon Product Advertising API

DEWALT DWP611 Fixed Base Compact Router

Last update on 2026-10-19 / Affiliate links / Images from Amazon Product Advertising API

Makita RT0701C 1-1/4 HP Compact Router

Last update on 2026-10-19 / Affiliate links / Images from Amazon Product Advertising API

Bosch GKF125CEN Colt 1.25 HP Palm Router

Depth Adjustment System In Real Use

This is where the Colt earns loyalty. Depth setting happens in two stages. First you release the clamp lever and slide the motor vertically in the base. The motor travels straight up and down, so the cord never twists around the tool. Anyone who has fought a threaded depth collar will appreciate that.

Second, you lock the clamp and use the micro fine wheel at the rear of the base. Each turn moves the bit in small, repeatable amounts. Dialing in a flush trim or shaving a hair off a mortise depth takes about five seconds.

Repeatability is the real win. I removed and reinstalled the motor several times and returned to within a few thousandths of my original setting. The quick clamp system also lets you move the motor between bases fast, which matters if you own the plunge base.

Bit Changes And Collet Performance

Bosch gives you two ways to change bits. The traditional method uses both wrenches, one on the shaft and one on the collet nut. The faster method uses the spindle lock plus a single wrench. I used the spindle lock almost every time.

The collet is a self releasing design. When you loosen the nut, the collet pops the bit free instead of pinching it. Stuck bits become a non issue. Grip strength is excellent, and I never had a bit creep during a cut.

Two limits apply. The collet is 1/4 inch only. There is no 3/8 inch or 8mm option from Bosch for this model. Also, bit access is slightly tight in the fixed base. You will sometimes remove the motor from the base for a comfortable swap.

Comfort, Grip And Noise Levels

The PR20EVS is one of the most comfortable trim routers I have handled. The waist of the housing fits a medium hand perfectly. Weight sits low, which keeps the tool from tipping on narrow stock.

At 3.3 pounds you can run it one handed for extended stretches. Overhead and vertical work feel manageable rather than exhausting. The rubber overmold grips even with slightly damp hands.

Noise tells a different story. This router is loud. It produces a high pitched whine at top speed that is noticeably sharper than the DeWalt DWP611. Several long time owners report the same thing. Hearing protection is not optional here, it is required. Vibration stays low, which partly offsets the noise complaint.

Real Woodworking Tasks I Tested

I put the Colt through a normal week of shop work. Roundovers on walnut shelf edges came out glassy at 35,000 RPM with a 1/4 inch bit. Chamfers on plywood showed minimal tearout when I climbed cut the first few inches.

Hinge mortises in pine doors took three shallow passes with a straight bit and a simple template. Accuracy was excellent thanks to the micro adjust wheel. Flush trimming laminate edges was the easiest task of all, since the small base rides tight to the substrate.

Dadoes in 3/4 inch plywood worked, but required patience. Three passes at 1/4 inch depth beat one aggressive pass every time. Sign carving with V bits also went well, which matches what many sign makers report.

Dust Collection: The Weak Point

Let me be direct. Dust collection on the standard PR20EVS does not exist. Bosch lists dust collection as “No” in the technical data for this configuration. Chips fly sideways and land on your layout lines, your shoes, and your bench.

You can fix it. The PR007 side handle subbase with dust collection attachment connects to a shop vacuum. It works reasonably well once fitted. The problem is that it costs extra and adds bulk to a tool you bought for its small size.

Reviewers have flagged this for years as the single biggest disappointment with the Colt line. In 2026, shipping a trim router without any dust port feels dated. Competing models at similar prices include ports in the box. Budget for the accessory if chip control matters to you.

What The PR20EVS Does Not Do Well

Honest reviews list failures. Here are the real ones.

No LED light. The newer Bosch GKF125CEN adds two LEDs and a clear subbase. The PR20EVS has neither. Dark cuts stay dark.

No 1/2 inch capability. You are locked into 1/4 inch shanks forever. Large panel raising bits are off the table.

Opaque base plate. Sight lines suffer compared to polycarbonate subbases on rival routers.

Loud operation. The motor whine is sharp and tiring over long sessions.

No case included with the bare tool version. Storage falls to you.

Single speed trigger absent. The power switch is a rocker on the housing, not a trigger, so you cannot feather speed by hand. None of these are deal breakers, but all of them are real.

Pros And Cons

Pros

• Excellent depth adjustment with coarse travel plus a micro fine wheel that repeats accurately.
• Comfortable palm grip with finger support pockets that improve control on edges.
• Rugged cast aluminum base that resists flex and job site abuse.
• Soft start and Constant Response circuitry deliver smooth starts and steady RPM under load.
• Self releasing collet makes bit removal painless, with strong grip and no slipping.
• Accepts large cutters up to 1 5/16 inch diameter despite the small footprint.
• Strong price to performance ratio versus 1.25 horsepower rivals.
• Wide accessory range including plunge base, tilt base, offset base, and edge guide.

Cons

• No dust collection included, which forces a separate PR007 purchase.
• No LED work light, unlike newer competing models.
• Louder than the DeWalt DWP611 with a sharp high pitched whine.
• Opaque subbase blocks your view of layout lines.
• 1/4 inch collet only, with no 3/8 inch option.
• Bare tool ships without a case or any router bits.

Price And Value In 2026

Last update on 2026-10-19 / Affiliate links / Images from Amazon Product Advertising API

Street pricing on the bare PR20EVS has recently sat around 113 dollars, with occasional dips lower during sales events. That places it below the Makita RT0701C and the DeWalt DWP611 in most listings.

Value depends on what you add. Buy the tool alone and you get a precise, durable router for roughly the price of a decent bit set. Add the plunge base, edge guide, and dust attachment and the total climbs past 200 dollars. At that point the GKF125CEN with its LEDs and extra power becomes worth a look.

My take is simple. If you want one reliable trim router for edges, mortises, and light joinery, the PR20EVS still delivers excellent value. If you need dust control out of the box, look elsewhere or budget extra.

Who Should Buy The Bosch Colt PR20EVS

This router fits specific people very well.

Hobbyist woodworkers doing roundovers, chamfers, inlays, and small dadoes will love the control and weight. Finish carpenters and installers get a tough aluminum base and a tool that survives a truck bed. Sign makers benefit from the high RPM range and smooth starts with small V bits.

Skip it if you need a router table workhorse. The 1 horsepower motor and 1/4 inch collet limit you there. A 2.25 horsepower router serves that role better.

Also skip it if you work mostly in dark corners or crave a clear base with LED lighting. Those buyers should consider the GKF125CEN instead. Everyone else gets a proven, comfortable, accurate tool that has earned its reputation honestly over many years.

Final Verdict

The BOSCH PR20EVS Colt remains a strong buy in 2026. It is not the newest trim router and it is not the best equipped. It is, however, one of the most pleasant to use. The depth adjustment system alone justifies the price for many woodworkers.

Rating: 4.3 out of 5.

The missing dust port and absent LED light hold it back from a perfect score. Noise is a genuine annoyance. But power delivery is smooth, build quality is excellent, and accuracy is repeatable. Few tools in this price range feel this refined in the hand.

Buy it if you value control and durability over feature checklists. Pair it with the PR007 dust attachment and a good 1/4 inch bit set, and you will have a palm router that lasts a decade.

Frequently Asked Questions

Does the Bosch PR20EVS accept 1/2 inch bits?

No. The PR20EVS uses a 1/4 inch collet only. Bosch does not offer a 1/2 inch collet for this model. You will need a larger router such as the Bosch 1617EVS for 1/2 inch shank bits.

Can I use the PR20EVS in a router table?

Yes, with limits. Several aftermarket plates fit the Colt base. The 1 horsepower motor handles small profile bits fine. Avoid large panel raising or heavy rail and stile cuts, since the motor lacks the torque for those jobs.

What is the difference between PR20EVS and PR20EVSK?

The PR20EVS is the bare tool with a fixed base only. The PR20EVSK kit adds a plunge base, an edge guide, and a carrying bag. The motor and electronics are identical in both versions.

Does the Bosch Colt have a soft start feature?

Yes. Soft start circuitry limits startup torque so the router does not twist in your hand when you switch it on. This makes balancing the tool on narrow edges much safer and easier.

How do I add dust collection to the PR20EVS?

Buy the Bosch PR007 side handle subbase with dust collection attachment. It mounts to the fixed base and connects to a shop vacuum hose. It is sold separately and is not included with the standard router.

Is the PR20EVS good for beginners?

Yes. Light weight, soft start, and simple depth adjustment make it forgiving for new users. Start with shallow passes, use sharp bits, wear hearing protection, and practice on scrap before cutting your project pieces.
