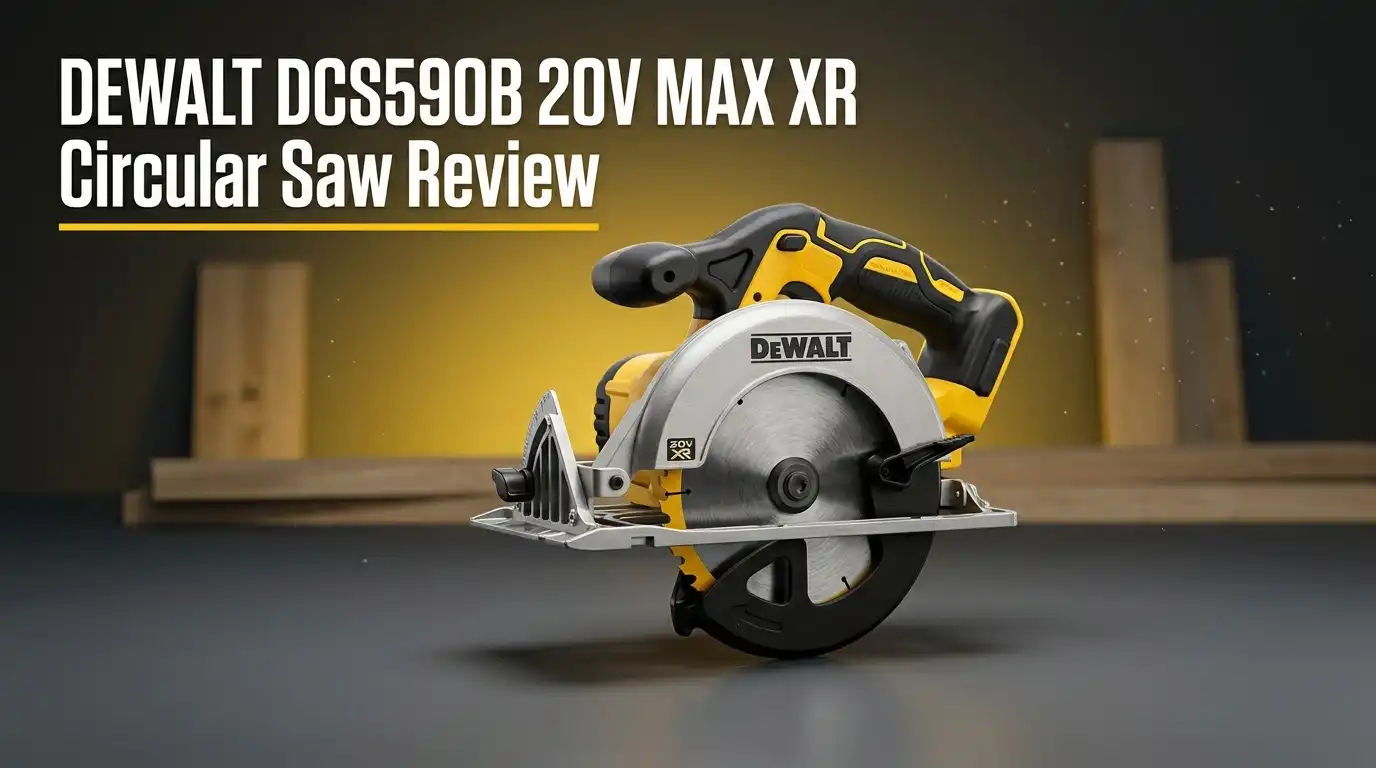

DEWALT DCS590B 20V MAX XR Circular Saw Review 2026: Worth Buying?

Cordless circular saws finally cut like corded saws, and the DEWALT DCS590B sits right at the center of that shift. This bare tool promises framing power, a full size blade, and all day runtime on the 20V MAX platform.

But the price is not small, and the battery is not included. So the real question matters: does this saw earn a spot in your truck in 2026, or should you spend that money somewhere else?

I spent weeks cutting framing lumber, plywood, decking, and wet treated stock with this saw. Here is everything I learned, including the parts DEWALT does not advertise.

In A Nutshell:

• Power that feels corded. The brushless motor pushes up to 1,700 MWO and spins at 5,500 RPM with no load. It rips through 2x material without bogging, as long as the blade is sharp and the battery is healthy.
• Serious cut capacity. You get 2 9/16 inch depth at 90 degrees and 2 inches at 45 degrees, plus a wide 57 degree bevel range with detents at 22.5 and 45 degrees. That covers framing, rafters, stair stringers, and sheet goods.
• Runtime is strong with the right pack. DEWALT claims up to 368 cuts per charge in 2×6 SPF using a high output 8.0Ah PowerPack. Smaller 2.0Ah packs cut that number down fast.
• It is a bare tool. No battery. No charger. No blade case. Budget another $150 to $250 if you are new to the DEWALT system.
• Weight is real. At about 8.2 pounds bare, the saw gets heavy overhead once you add a big battery. Your shoulder will notice by hour six.
• Not perfect. Dust collection needs an optional port, the shoe can flex under abuse, and the saw costs more than a corded model with similar output.

DEWALT DCS590B 20V MAX XR Brushless 7 1/4 Inch Circular Saw

Last update on 2026-10-27 / Affiliate links / Images from Amazon Product Advertising API

The DCS590B is DEWALT’s current flagship 20V MAX framing saw. It uses a 7 1/4 inch blade with a 5/8 inch arbor and a right side blade layout.

The brushless motor is rated at 1,700 Max Watts Out, which puts it near the top of the cordless class. DEWALT quotes 5,500 RPM with no load. The shoe is aluminum. The handle sits on top, which is the layout most framers already know.

Tool Connect chip ready is built in, so crews that track tools can drop a chip inside later. The saw carries a three year limited warranty, a one year free service agreement, and a 90 day money back guarantee. It replaces the older DCS573 FlexVolt Advantage model in DEWALT’s lineup.

Unboxing Experience And First Impressions

There is no box drama here. The DCS590B ships as a bare tool in a plain cardboard carton, wrapped in a thin plastic sleeve. Inside you get the saw, a blade already mounted, a blade wrench clipped to the body, and a folded manual. That is it. No kit box, no bag, no battery, no charger.

First impression out of the carton is density. The saw feels tight and solid, with no rattles when you shake it. The magnesium upper guard has a clean finish. The trigger has a short, crisp pull. The rafter hook flips out with a satisfying click and stays put.

One small letdown: the included blade is a basic 24 tooth carbide unit. It cuts fine for framing, but it is not the blade you want for plywood or finish work. Plan on buying a better blade on day one.

Key Specifications At A Glance

Here are the numbers that matter most. The motor is brushless and runs on the 20V MAX platform. No load speed is 5,500 RPM. Maximum watts out is 1,700. Blade diameter is 7 1/4 inches with a 5/8 inch arbor.

Depth of cut reaches 2 9/16 inches at 90 degrees and 2 inches at 45 degrees. Bevel capacity runs from 0 to 57 degrees, with positive stops at 22.5 and 45 degrees. Bare tool weight is about 8.2 pounds. The shoe is aluminum, and the blade sits on the right side.

DEWALT rates runtime at up to 368 crosscuts in 2×6 SPF on a single charge with the DCB2108 PowerPack. An optional dust port fits the DEWALT AirLock system or any standard 35 mm extractor hose. Everything here reads like a framing saw, because that is exactly what it is.

Top 3 Alternative for DEWALT DCS590B

Last update on 2026-10-27 / Affiliate links / Images from Amazon Product Advertising API

DEWALT FLEXVOLT 60V MAX 7 1/4 Inch Circular Saw with Brake (DCS578B)

Last update on 2026-10-27 / Affiliate links / Images from Amazon Product Advertising API

DEWALT 20V MAX 7 1/4 Inch Cordless Circular Saw with Brake (DCS570B)

Last update on 2026-10-27 / Affiliate links / Images from Amazon Product Advertising API

Makita XSH06Z 18V X2 LXT 36V Brushless 7 1/4 Inch Circular Saw

Cutting Power And Motor Performance

Power is where this saw earns its price. The brushless motor pulls hard through double 2×10 headers without stalling. I made repeated rip cuts in wet pressure treated 2×8 stock, and the blade speed held steady. The saw only bogged when I pushed faster than any sane person would.

Compared to the older DCS570B, the DCS590B feels noticeably stronger under load. Compared to the 60V FlexVolt DCS578B, it feels slightly softer in the deepest cuts, but the gap is smaller than the voltage numbers suggest.

Blade choice changes everything. With a fresh 24 tooth framing blade, the saw behaves like a corded unit. With a dull blade, it heats up and trips battery protection. Keep sharp blades on hand and this motor rarely disappoints.

Battery Runtime And Real World Endurance

DEWALT’s 368 cut claim comes from a lab, not a jobsite. In real use I got roughly 180 to 220 crosscuts in 2×4 SPF using an 8.0Ah PowerPack, mixing in bevels and a few rips. That still covers most of a framing day with one spare pack.

Smaller batteries change the story. A 2.0Ah compact pack gives you maybe 40 to 60 cuts and gets hot quickly. A 5.0Ah XR pack lands in the middle and feels like the practical minimum for daily work.

Here is the honest trade off. The saw draws hard current, so cheap or aged packs sag and shut down. If your batteries are old, this saw will expose them. Pair it with high output cells and the runtime complaint disappears.

Cut Capacity, Bevel Range And Accuracy

The 2 9/16 inch depth at 90 degrees clears a 2×4 standing on edge with room to spare. That means single pass cuts on standard framing lumber every time. At 45 degrees you still get 2 inches, which handles beveled rafter tails and deck framing.

The 57 degree bevel is generous. Detents at 22.5 and 45 degrees click firmly, and the lever locks without creeping. My factory bevel setting was accurate within about half a degree, which is fine for framing but worth checking before finish work.

Depth adjustment uses a single lever and a clear scale. The scale markings are stamped, not painted, so they stay readable after sawdust and scrapes. Accuracy out of the box was better than I expected from a jobsite tool.

Build Quality And Jobsite Durability

This saw takes abuse well. The magnesium upper and lower guards resist dents better than plastic. The lower guard retracts smoothly even after I buried the saw in sawdust and wet shavings. No sticking, no hesitation.

The aluminum shoe stays flat under normal use. I did notice slight flex when I leaned hard on an unsupported edge, so it is not indestructible. Dropping the saw onto concrete shoe first would likely bend it.

The rafter hook is steel and feels strong enough to hang the saw from a top plate with a battery attached. The trigger and brake held up through hundreds of cycles with no change in feel. After three weeks of real work, the only visible wear was scratched paint. Durability is a clear strength here.

Handling, Balance And Comfort

Balance is good, but weight is the honest weak point. At 8.2 pounds bare, the saw jumps past 10 pounds with a large battery. Overhead cuts and repetitive one handed work get tiring.

The rubber overmold grip is comfortable and handles sweaty hands well. The trigger sits where your finger naturally lands. Vibration is low for a saw this powerful, which helps during long rip cuts.

The right side blade layout divides people. Right handed users see the cut line clearly over the shoe but lose sight of the blade itself. Left handed users may prefer the DCS565 layout instead.

Noise is moderate. It is quieter than a corded saw but still demands hearing protection. The LED light helps in crawl spaces and shaded framing cavities.

Safety Features That Actually Work

The electronic brake is the standout. Release the trigger and the blade stops in roughly one to two seconds. That matters when you are making repeat cuts on a stack of studs and setting the saw down quickly.

The lock off switch sits above the trigger and requires a deliberate thumb press. It prevents accidental starts when the saw hangs from a rafter hook. I never triggered it by mistake.

The lower blade guard springs back fast and covers the blade fully. The retraction lever is easy to reach with your thumb during plunge style starts.

A real caution: the brake does not replace good habits. The blade still coasts briefly, and the saw is powerful enough to kick if you pinch the kerf. Use a support system and let the saw do the work.

Dust Collection And Cleanup

This is where the DCS590B falls short of a shop tool. The dust port is optional and sold separately. Out of the box, the saw simply ejects chips out the rear port and onto whatever is behind you.

Add the optional port and the saw connects to the DEWALT AirLock system or any 35 mm extractor hose. With a good vacuum, chip capture improves a lot, though it is still far from sealed. Fine dust escapes around the shoe.

For framing outdoors, none of this matters. For remodel work in a finished home, it matters a great deal. Buy the port before the job, not after. The attached hose also adds drag and partly cancels the freedom of going cordless, which is an irritating trade off.

What This Saw Does Not Do Well

Honest reviews list the misses, so here they are. The saw is heavy. Overhead work and ladder cuts get uncomfortable fast with a big battery hanging off the back.

It is expensive for a bare tool. Adding a battery and charger pushes the real cost well past many corded saws with similar output.

Dust collection is an afterthought. No port included, and capture is mediocre even with one fitted.

The included blade is basic. Expect to replace it immediately for anything beyond rough framing.

It punishes weak batteries. Compact and older packs sag, overheat, and trigger shutdowns under heavy load.

Finally, the right side blade layout limits visibility for some users. None of these flaws are deal breakers, but pretending they do not exist would be dishonest.

Pros And Cons

Pros

• Strong brushless motor rated at 1,700 MWO that handles double 2x material without stalling
• Generous 2 9/16 inch depth of cut at 90 degrees for single pass framing cuts
• Wide 57 degree bevel range with firm detents at 22.5 and 45 degrees
• Fast electronic brake that stops the blade in about one to two seconds
• Magnesium guards and aluminum shoe that survive real jobsite abuse
• Integrated rafter hook and LED light that prove genuinely useful every day
• Tool Connect chip ready for crews that track inventory
• Three year warranty plus a 90 day money back guarantee

Cons

• Heavy at 8.2 pounds bare, and worse with a high capacity battery
• Dust port sold separately, and dust capture stays mediocre
• Bare tool pricing feels steep once you add battery and charger
• Included blade is basic and needs replacing for quality cuts
• Drains compact batteries quickly and may trigger thermal shutdowns
• Right side blade limits cut line visibility for some left handed users

Who Should Buy The DCS590B

This saw fits framers, remodelers, deck builders, and punch list crews who already own DEWALT 20V MAX batteries. If you have a charger and two 5.0Ah packs in your truck, buying the bare tool is an easy call.

It also suits serious DIY users building decks, sheds, or additions. The capacity and power remove the need for a corded saw and an extension cord on most projects.

Who should skip it? Trim carpenters who mostly cut thin stock will do better with a lighter 6 1/2 inch model. Anyone invested in Milwaukee or Makita should stay on their own platform rather than start a second battery system.

Shop users who need clean air should look at a track saw with real dust extraction instead.

Price And Value In 2026

Street pricing for the DCS590B bare tool has hovered around $180 to $200 through 2025 and into 2026, with occasional sale dips below that. Prices change often, so check the current listing before buying.

Last update on 2026-10-27 / Affiliate links / Images from Amazon Product Advertising API

That number looks fair next to competing flagship cordless saws, which usually sit in the same range. The value case depends entirely on your battery situation. Already on DEWALT? Excellent value. Starting fresh? The real spend climbs toward $350 once you add a charger and a capable pack.

Watch for holiday kit deals. DEWALT regularly bundles saws with batteries at prices that beat buying parts separately. Patience here saves real money.

Final Verdict

The DEWALT DCS590B is a very good cordless framing saw with a few honest flaws. The motor delivers power that genuinely rivals corded units. The cut capacity, bevel range, brake, and build quality all hold up under daily jobsite use.

The weight, the missing dust port, and the bare tool pricing keep it from being perfect. None of those issues ruin the tool. They just mean you should go in with clear expectations.

My rating is 4.5 out of 5. If you already carry DEWALT 20V MAX batteries, this is the circular saw to buy. If you are starting from zero, compare the FlexVolt DCS578B and any current kit deals before you commit.

Frequently Asked Questions

Does the DCS590B come with a battery and charger?

No. The B in the model name means bare tool. You get the saw, a 24 tooth blade, and a blade wrench only. Battery and charger are sold separately.

What battery size works best with this saw?

A 5.0Ah XR pack is the practical minimum for steady work. An 8.0Ah PowerPack delivers the best runtime and the strongest sustained power. Compact 2.0Ah packs work but drain fast and run hot.

Can the DCS590B cut a 4×4 post in one pass?

No. Maximum depth is 2 9/16 inches at 90 degrees. A 4×4 measures 3.5 inches thick, so you need two passes from opposite sides.

Is the DCS590B better than the DCS570B?

Yes, in power and features. The DCS590B offers higher watts out, a wider bevel range, magnesium guards, and a rafter hook. The DCS570B remains a solid budget choice at a lower price.

Does it work with FlexVolt batteries?

Yes. FlexVolt 60V MAX batteries operate in 20V mode on this saw and provide long runtime. The saw will not draw 60V power, since it is a 20V MAX XR tool.

What blade should I use for plywood?

Use a 40 to 60 tooth fine finish blade for plywood and sheet goods. The stock 24 tooth blade leaves tear out on veneered surfaces.

Is the saw good for left handed users?

It works, but the right side blade places the cut line on the far side for left handed grip. Many left handed users prefer a left blade model such as the DCS565.

How long is the warranty?

DEWALT provides a three year limited warranty, a one year free service contract, and a 90 day money back guarantee on this saw.
